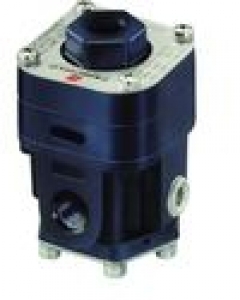

Fairchild Volume Booster

Fairchild Volume Booster
Hover over image to zoom
Image is for illustrative purpose only.
please refer to product description.
Product ID : VLB-FRC-M4100A
Manufacturer: Fairchild
E-mail to a friend

Description

Maker : Fairchild

The Fairchild Models 10 and 81 are ideal for general precision pressure regulator applications, while the compact Models 30 and 80 offer high precision in a small package. The Model 100 high flow regulator, the 1000 no bleed pressure regulator, the 4000A no bleed high flow regulator and the Model 4100A Low Pressure regulator also offer high precision control

Model 2000 - 40 SCFM [68 m3/Hr] Forward/Exhaust Flow No Bleed Volume Booster (M2000)

The Model 2000 Pneumatic Volume Booster converts a low flow signal to a high flow output. It is ideally suited for a variety of applications including the operation of air systems that require rapid valve or cylinder action. With its balanced supply valve and aspirator tube, the M2000 booster will maintain setpoint while delivering a strong boost of volume. In addition, its no bleed soft seat design minimizes air consumption of the system. As a pilot operated regulator design, the M2000 handles up to 250 psig, [17.0 BAR], (1700 kPa) supply pressure. The M2000 provides a flow capacity of 40 SCFM (68 m3/HR), which results in a Cv factor of just less than 1.0 in forward flow mode.

Model 20 - 45 SCFM [76.5 m3/Hr] Forward/Exhaust Flow Volume Boosters (M20)

The Model 20 Volume Booster is a smaller pneumatic device capable of high flow and exhaust capacity. This device uses a force balance system to control the movement of the supply and exhaust valves. As a pilot operated regulator design, the M20 handles up to 150 psig, [10.0 BAR], (1000 kPa) supply pressure and has ten available ratios to cover a wide range of applications. The M20 Booster provides a flow capacity of 45 SCFM (76.5 m3/HR), which equates to a Cv factor of approximately 1.0 in both forward and exhaust modes. 20812, 20822, 20832, 20842, 20852, 20862, 20813, 20823, 20833, 20843, 20853, 20863
